Overview
The Ram Cummins EFI Live AutoCal V3 Tuning Package is designed for select 2006-2021 Ram Cummins trucks. The package includes an EFI Live AutoCal V3 device, custom Black Bandit tune files matched to the selected model year and ECM platform, and CSP5 Switch-on-the-Fly (SOTF) support. A bypass cable is included for supported applications where required.
Available configurations cover 5.9L and 6.7L Cummins engines, including select Cab & Chassis models. Choose the correct variant based on engine size, model year, ECM platform, and vehicle configuration.
What's Included
| Component | Description |
|---|---|

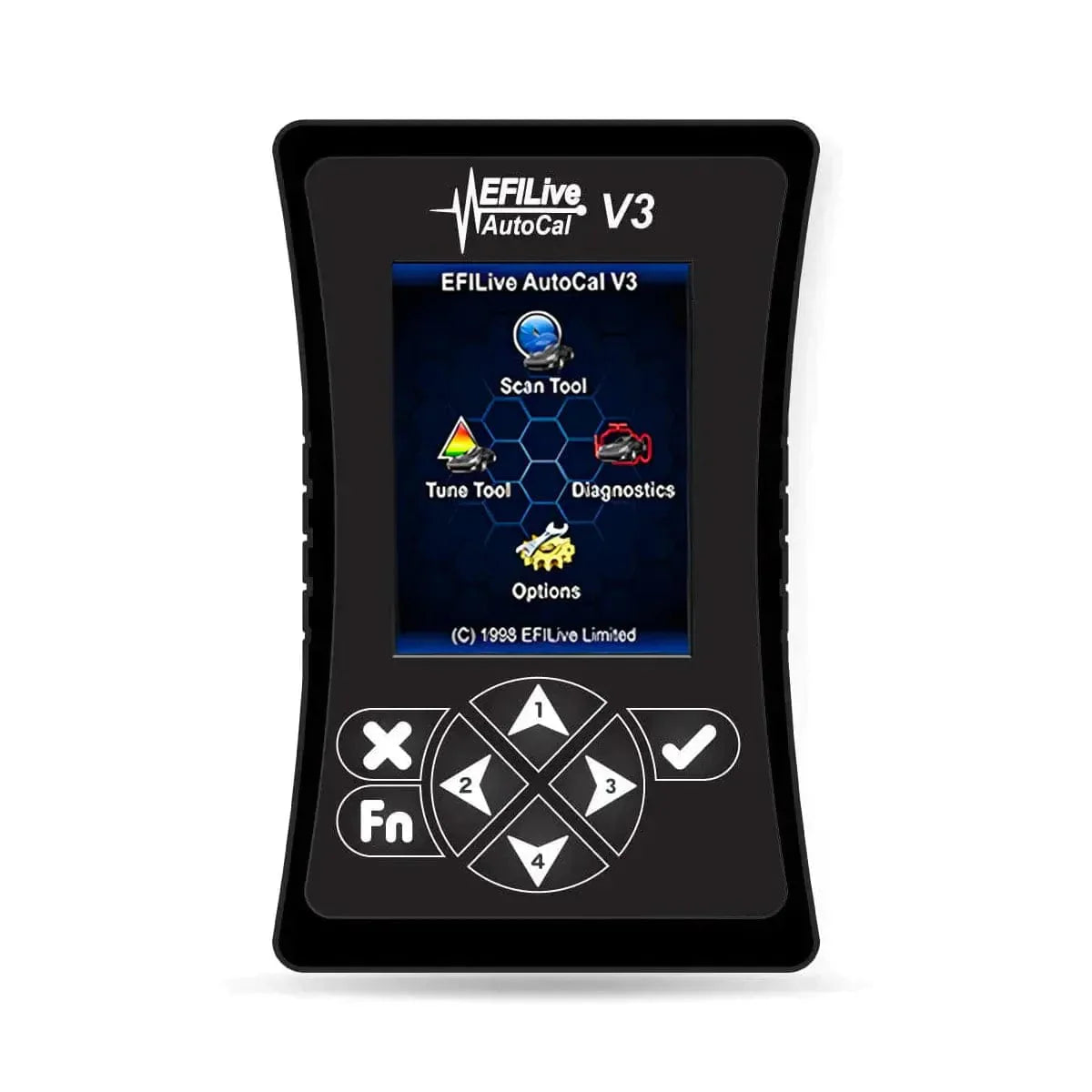

| EFI Live AutoCal V3 | Tuning interface supporting calibration transfers, data logging, diagnostics, and live engine data monitoring. |
| Custom EFI Live Tune | Year-specific Black Bandit calibration prepared for the selected vehicle and ECM platform. |
| CSP5 SOTF Switch | Included switch hardware for supported multi-level tuning configurations. |
| EFI Live Bypass Cable | Included only for selected 2018 and newer applications where required. |
Custom Tune Delivery: The AutoCal V3 ships blank. Custom Black Bandit tune files are delivered by email after checkout and submission of the required vehicle information.
Vehicle and ECM Compatibility
| Engine | ECM Platform | Model Years |
|---|---|---|
| 5.9L Cummins | CMB | 2006-2007 |
| 6.7L Cummins | CMC | 2007.5-2009 |
| 6.7L Cummins | CMD | 2010-2012 |
| 6.7L Cummins | CME | 2013-2017 |
| 6.7L Cummins | CME | 2018 |
| 6.7L Cummins | CMF | 2019-2021 |
| 6.7L Cummins Cab & Chassis | CME-CC | 2013-2017 |
| 6.7L Cummins Cab & Chassis | CME-CC | 2018-2021 |
Important Selection Notes:
- Select the correct engine size, model year, and ECM platform.
- Cab & Chassis trucks must use the appropriate CME-CC variant.
- Some 2018 and newer applications require an EFI Live bypass cable.
- Selecting the wrong variant may cause ECM communication or compatibility issues.
- The vehicle must be tuned and free of active fault codes before any emissions components are removed. Removing components before tuning can damage the ECM.
Key Features
- Custom Year-Specific Tuning: Black Bandit tune files prepared for the selected Ram Cummins model year and ECM platform.
- EFI Live AutoCal V3: Supports tune transfers, data logging, diagnostic trouble code reading and clearing, and live data monitoring.
- CSP5 SOTF Support: Includes the switch hardware for supported multi-level tuning setups.
- Bypass Cable Support: Included with selected variants where required.
- Multiple Tune Levels: Choose from the available power-level options for the selected configuration.
- 5.9L and 6.7L Applications: Available for supported Ram Cummins pickup and Cab & Chassis configurations.
Available Horsepower Options
| Tune Level | Description |
|---|---|
| Stock | Stock-level calibration option. |
| +30 HP | Performance calibration option. |
| +65 HP | Performance calibration option. |
| +100 HP | Higher-output calibration option. |
| +130 HP | Highest available power-level option. |
Available tune levels may vary by vehicle year, ECM platform, and selected configuration. Actual results depend on vehicle condition, supporting modifications, and operating conditions.
How to Order
- Choose Your Variant: Select the engine, model year, ECM platform, and pickup or Cab & Chassis configuration.
- Complete Checkout: Place your order for the selected tuning package.
- Submit Vehicle Details: Use the vehicle information submission form so the correct calibration can be prepared.
- Receive the Device: The AutoCal V3 and applicable switch hardware are shipped to you.
- Receive Custom Tune Files: Custom Black Bandit files and setup instructions are sent by email.
Installation and Support
Refer to the EFI Live Cummins Tuning Guide for device setup and installation information. Professional assistance is recommended for customers who are new to EFI Live tuning.
Important: Install the tune first and make sure the truck has no active fault codes before removing any emissions components. Removing components before the vehicle is tuned can damage the ECM.
System Requirements
| Item | Requirement |
|---|---|
| Software | EFI Live Scan & Tune V8 |
| Operating System | Windows 7, 8, 8.1, or 10 |
| Connection | USB port |
| Display | 1280 x 960 resolution or higher |
| Storage | At least 1 GB of free space |
Downloads and Resources
- EFI Live Scan & Tune Software V8.3
- AutoCal V3 Installation Guide
- SOTF Switch Installation Guide
- AutoCal V3 User Guide
- EFI Live Help Center
Optional Add-Ons
Frequently Asked Questions
Does the AutoCal V3 arrive with the tune files installed?
No. The device ships blank. Custom Black Bandit tune files are prepared and delivered by email after checkout and submission of the required vehicle details.
Is the CSP5 SOTF switch included?
Yes. The package includes CSP5 SOTF switch hardware for supported configurations. Confirm the selected variant and included components when ordering.
Do all 2018 and newer trucks require a bypass cable?
Not necessarily. The cable is required for select 2018 and newer applications and is included only with variants where required.
How do I choose the correct tuning variant?
Check the engine size, model year, ECM platform, and whether the truck is a pickup or Cab & Chassis. Cab & Chassis applications must use the corresponding CME-CC variant. If you are unsure, contact Dynamic Diesels support before ordering.
What power levels are available?
The available options are Stock, +30 HP, +65 HP, +100 HP, and +130 HP. Availability depends on the selected vehicle and tuning configuration.
Do I need to tune the truck before removing emissions components?
Yes. The vehicle must be tuned with no active fault codes before any emissions components are removed. Removing components before tuning can damage the ECM.
Can I purchase additional tune files?
Yes. Additional files are listed separately in the EFI Live Cummins Custom Tune Files product listing.
Additional Information
Confirm the correct engine, model year, ECM platform, and vehicle configuration before ordering. Calibration compatibility and permitted vehicle use should be verified before installation or operation.
Shipping
Free shipping on tuners. We aim to dispatch in-stock orders within 2 business days. Most North American orders arrive within 2–7 business days after dispatch via expedited ground. International orders typically take 5–14 business days, depending on destination and customs.
Transit time starts when your order ships, not when you place it. Weekend orders are processed the next business day. Orders shipping outside Canada may be subject to import duties and taxes, which are the customer’s responsibility on delivery. See our shipping policy for full details.
Items Eligible for Return
These items can be returned within 30 days of the purchase date if they are unopened, unused, and in their original packaging:
- Tuning devices: an unopened, unused Mini Maxx V1/V2 or a blank EFI Live device.
- Cables and device accessories: an unopened, unused switch, bypass cable, universal pyrometer, or docking station.
Final Sale
The following items are final sale and cannot be returned:
- Custom tuning: additional tune files purchased separately, and custom tuning purchased with a device.
- Exhausts and race pipes: including downpipes purchased separately from an exhaust or race pipe.
- EGR kits.
Manufacturer Warranty
Every item we sell includes a 90-day manufacturer warranty. An item returned for a manufacturer defect can be refunded in full, exchanged, or replaced with a similar item of equal or lesser value.
Eligible items returned for any other reason follow the same options — a full refund, an exchange, or a replacement of equal or lesser value — as long as the item meets the requirements above.
Return Process
Every return must be approved before it is sent back. Email support@dynamicdiesels.com or call 1-877-600-5667 and we’ll issue a valid Return Merchandise Authorization (RMA) number and a prepaid return label.
Do not send anything back without an approved RMA and the return label we provide. Returns sent without both will not be accepted or processed. See our refund policy for full details.
Warranty
All tuning devices come with a 90-day manufacturer’s warranty from the date of delivery. You have a full 90 days from delivery to start a warranty claim if an issue arises. We also honor all applicable manufacturer warranties on the products we sell; coverage period and claim process vary by brand and product category.
To start a claim, email support@dynamicdiesels.com or call 1-877-600-5667 with your order number. We may ask a few questions about the device to confirm the fault, and we may request proof of communication with the manufacturer, as they are often the primary contact for device issues.
Once your claim is approved, you can choose one of the following:
- Return for replacement: Send us the faulty device, and once we receive it we’ll dispatch a replacement of the same or a similar device of equal or lesser value.
- Return for refund: Return the faulty device and we’ll refund the original payment method. Please allow 3–4 business days for the refund to appear.
- Return for gift card: Receive a gift card for the faulty device, sent to the email on file and available to use right away.
You’ll receive a Return Merchandise Authorization (RMA) number and a prepaid return label to send the faulty device back. See our refund policy for full details.
