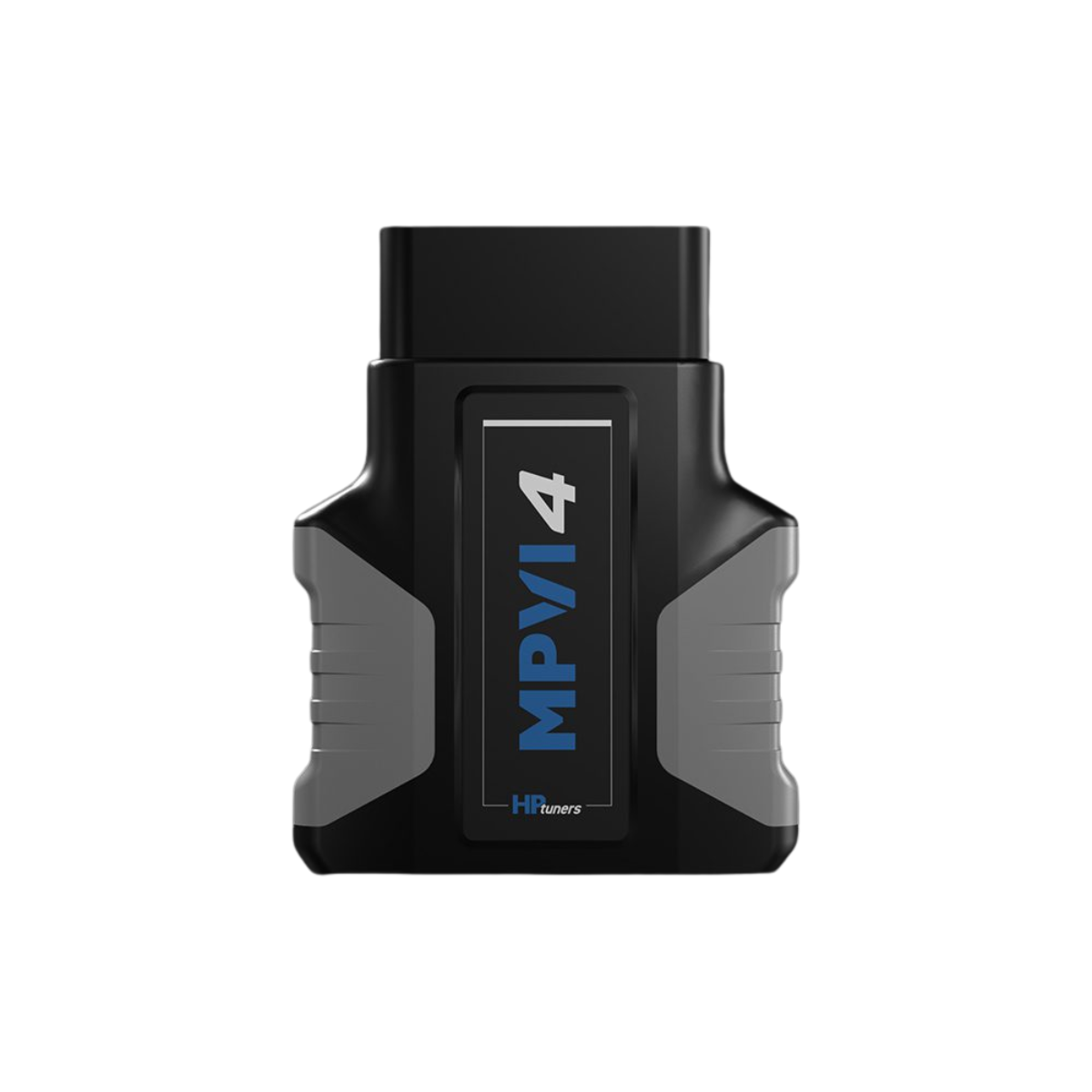

HP Tuners MPVI4 OBDII Tuning & Diagnostic Interface
The HP Tuners MPVI4 is an advanced OBDII tuning, diagnostic, and data-logging interface designed to connect supported vehicles with HP Tuners VCM Suite. It provides the hardware needed to scan vehicle data, diagnose issues, read and write supported controllers, perform custom calibration, and capture high-speed data logs from one compact interface.
As the newest generation in the MPVI platform, MPVI4 adds more processing power, expanded memory, improved standalone logging, Bluetooth 5.2, a redesigned OBDII connector, and hardware support for upcoming Wi-Fi functionality.
Key Features
- High-Speed Standalone Data Logging: Increased processing power, bandwidth, and memory allow more parameters to be logged at higher speeds, with standalone logging performance comparable to a wired VCM Scanner setup.
- Future Wi-Fi Support: Built-in Wi-Fi 802.11 a/b/g/n hardware supports transfer speeds up to 150 Mbps once enabled through a future HP Tuners firmware update.
- Wide Vehicle Support: Use one interface across thousands of supported vehicle applications, including cars, trucks, SUVs, performance vehicles, and select powersports platforms.
- Improved OBDII Connection: A redesigned tapered OBDII connector provides a more secure fit across a wider range of diagnostic ports.
- Pro Feature Set Included: MPVI4 comes standard with the HP Tuners Pro Feature Set for expanded data-logging capabilities and PROLINK+ compatibility.
- USB-C & Bluetooth: Modern USB-C connectivity and Bluetooth 5.2 provide flexible communication options for supported HP Tuners software and applications.
MPVI4 Technical Specifications
- Processor: Dual-core 1.7 GHz
- Memory: 1 GB RAM
- Bluetooth: Bluetooth 5.2
- Wi-Fi: 802.11 a/b/g/n, up to 150 Mbps*
- Connection: USB-C
- Status Indicators: Three multicolor RGB indicator lights
- Vehicle Connection: Tapered OBDII connector
*Wi-Fi functionality requires a future firmware update from HP Tuners.
What Can You Do With HP Tuners MPVI4?
When paired with HP Tuners VCM Suite, the MPVI4 provides access to supported vehicle scanning, diagnostics, calibration, and data acquisition functions.
- Read supported vehicle controllers
- View and clear diagnostic trouble codes
- Monitor vehicle parameters with VCM Scanner
- Record high-speed data logs
- Read and save supported calibration files
- Edit supported calibration parameters with VCM Editor
- Write licensed calibration files back to supported controllers
- Use one interface across multiple supported vehicles and platforms
Available functions and editable parameters vary by vehicle, controller, and HP Tuners support level.
Vehicle Compatibility
HP Tuners MPVI4 supports thousands of vehicle applications across numerous manufacturers. Coverage includes supported domestic and import cars, pickup trucks, SUVs, performance vehicles, and select powersports applications.
Vehicle support is application-specific. Check the year, make, model, engine, controller support, required services, and credit requirements before purchasing credits or beginning a tune.
View the HP Tuners Supported Vehicle List
VCM Suite Compatibility
MPVI4 works with HP Tuners VCM Suite 5.2 or newer. VCM Suite combines HP Tuners' primary calibration and diagnostic software:
- VCM Editor: Used to read, edit, save, and write supported vehicle calibration files.
- VCM Scanner: Used for diagnostics, parameter monitoring, scanning, and data logging.
Getting Started with VCM Suite
HP Tuners Credits Required
HP Tuners credits are sold separately and are not included with the MPVI4 unless specifically stated in the product options.
Credits are used to license supported vehicle controllers before a modified calibration can be written. The number of credits required depends on the vehicle, controller, and application.
You can read, inspect, edit, and save supported files without licensing the controller. Credits are required when the applicable controller needs to be licensed for writing.
Always check the official HP Tuners vehicle support list to confirm the required number of credits for the exact application.
Pro Feature Set Included
MPVI4 comes standard with the HP Tuners Pro Feature Set. This provides advanced functionality for users who need additional data-acquisition and logging capabilities.
MPVI4 is also compatible with HP Tuners PROLINK+, allowing supported analog and CAN-based external signals to be incorporated into data logging. PROLINK+ hardware is sold separately.
Why Upgrade to MPVI4?
MPVI4 moves the HP Tuners interface platform to newer hardware designed for current and future tuning applications. Compared with earlier generations, it provides substantially more memory, a faster processor, improved standalone logging, updated connectivity, and a redesigned vehicle connector.
- Newest-generation MPVI hardware platform
- Dual-core 1.7 GHz processor
- 1 GB of onboard memory
- High-speed standalone data logging
- Bluetooth 5.2
- Future Wi-Fi capability
- Improved tapered OBDII connector
- USB-C connectivity
- Pro Feature Set included standard
- Access to current and future supported HP Tuners applications
What's Included?
- 1 × HP Tuners MPVI4 Interface
- 1 × USB-C Cable
- 1 × Quick Start Guide
HP Tuners Universal Credits are sold separately.
Important Before Ordering
MPVI4 is the hardware interface used to communicate with supported vehicle controllers. Vehicle support, available calibration parameters, licensing requirements, required credits, and any additional unlock or modification services vary by application.
Before ordering credits or related tuning services, confirm the exact year, make, model, engine, and controller using the official HP Tuners support information.
HP Tuners MPVI4 Resources
- HP Tuners Vehicle Support List
- Getting Started with VCM Suite
- HP Tuners Support & Documentation
- MPVI4 User Documentation
