Black Bandit

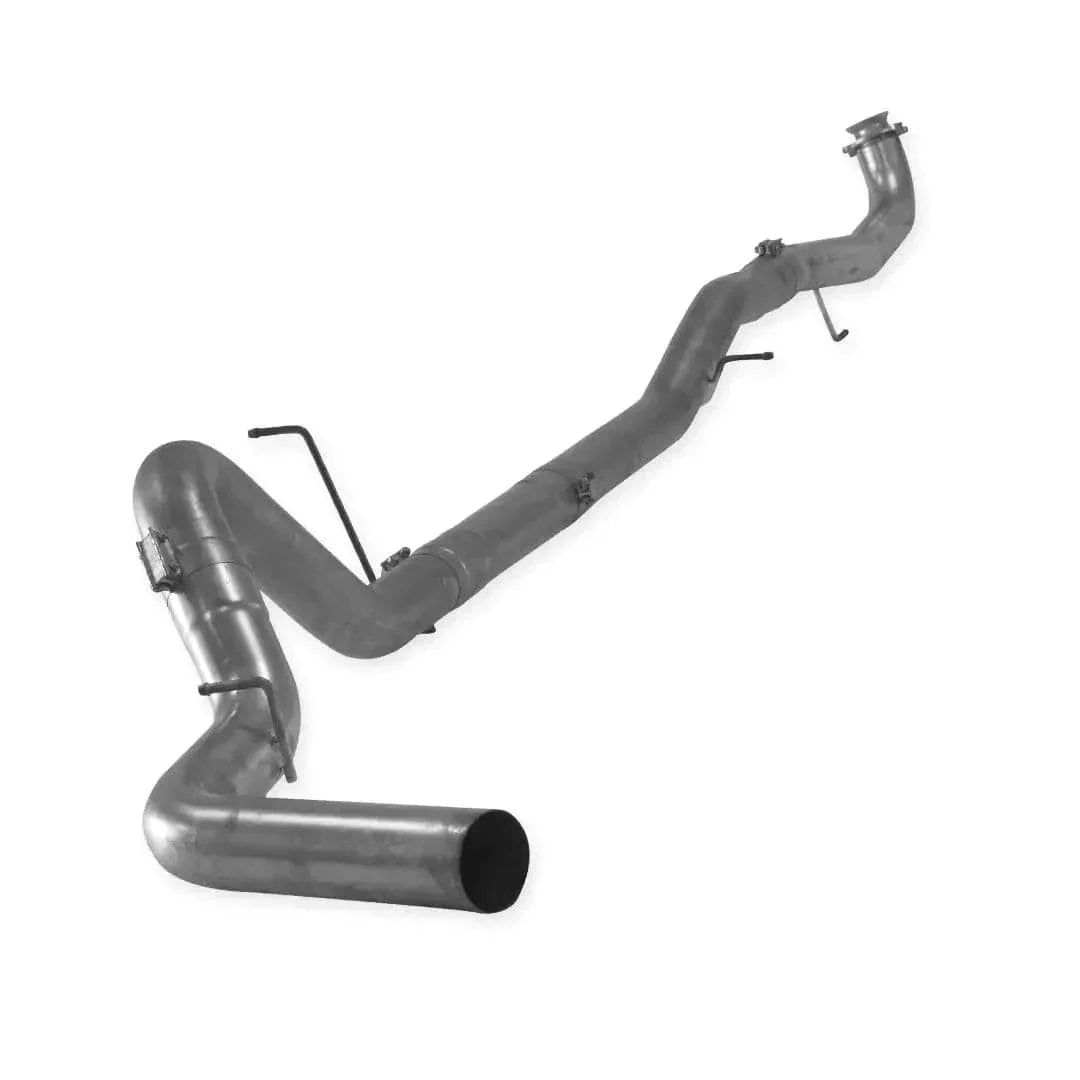

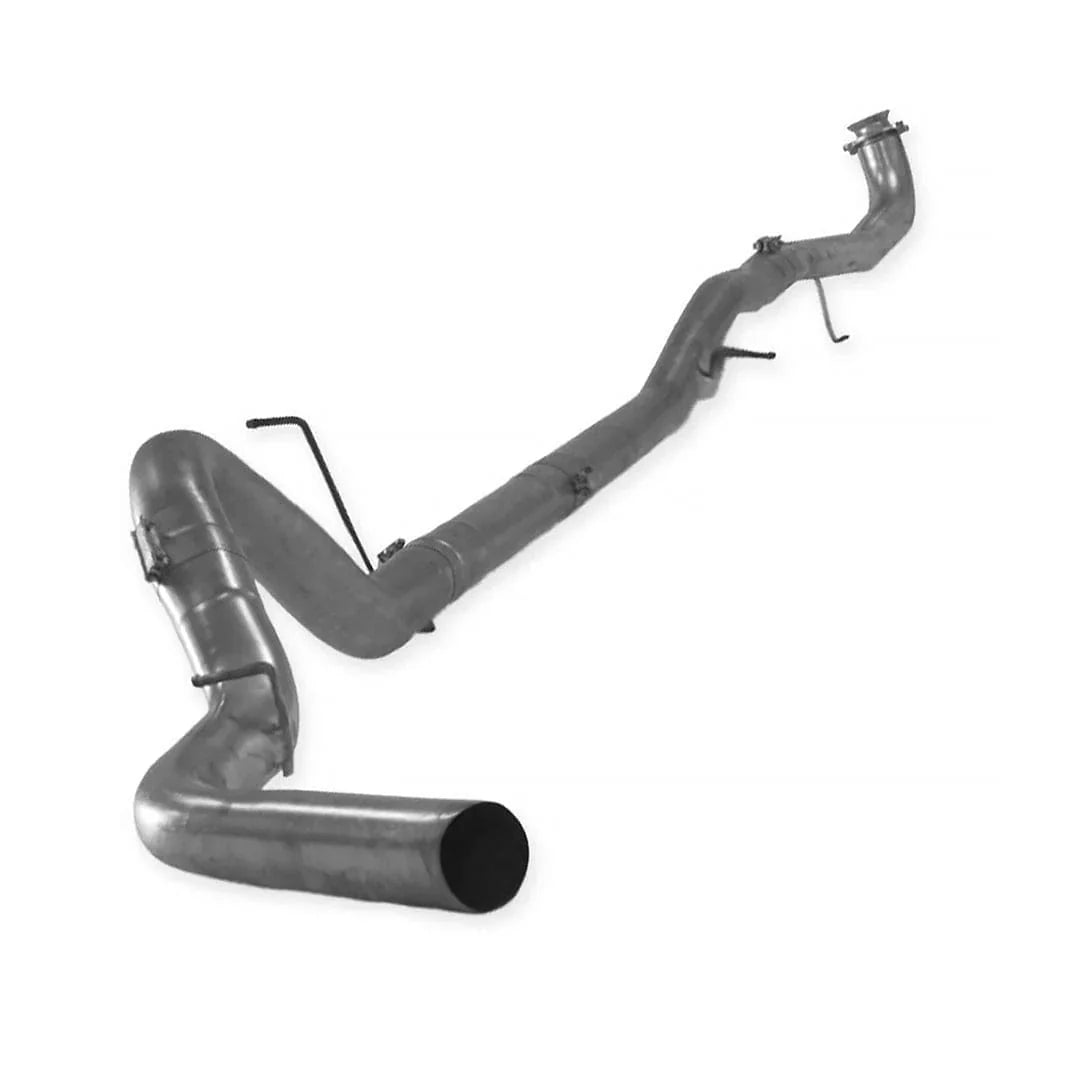

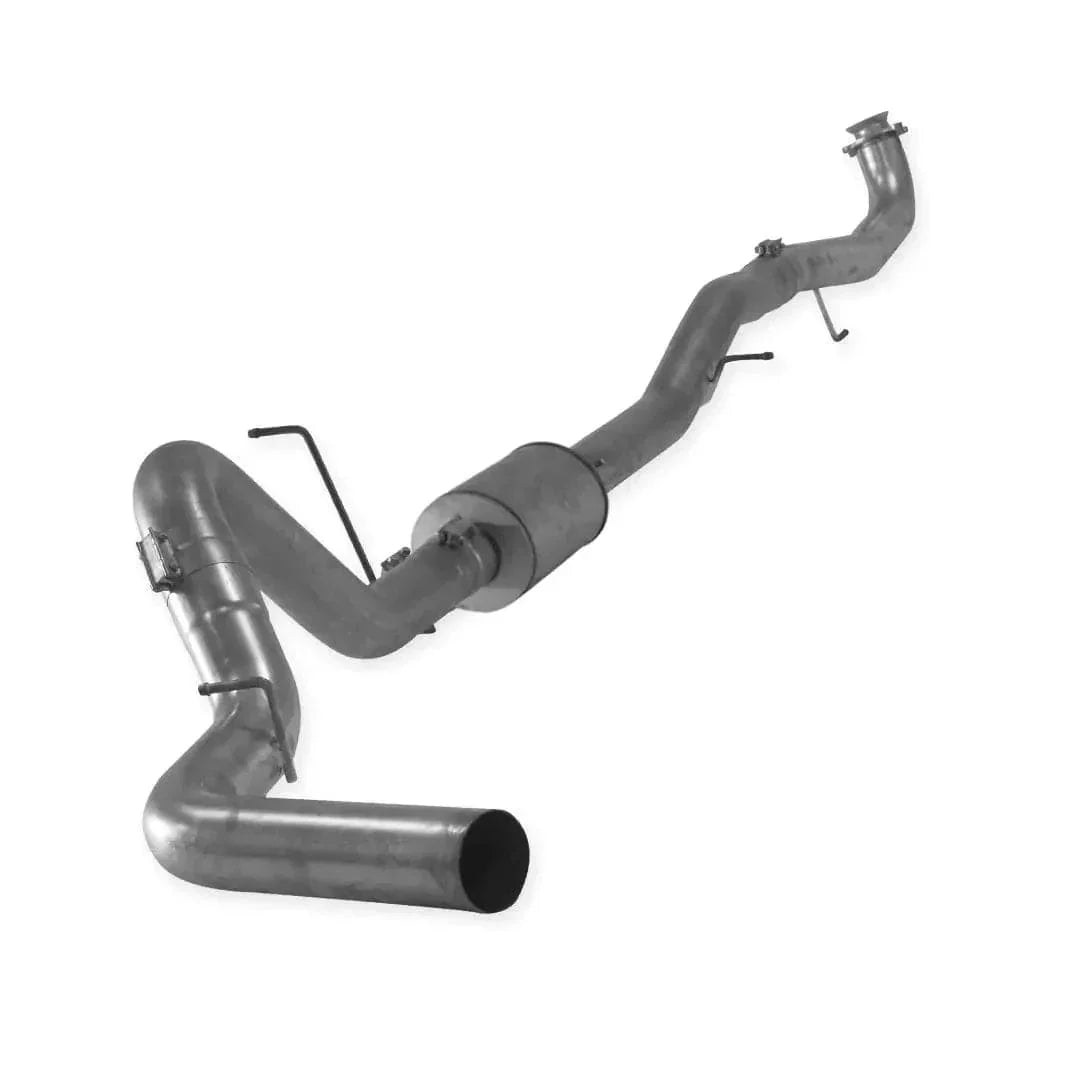

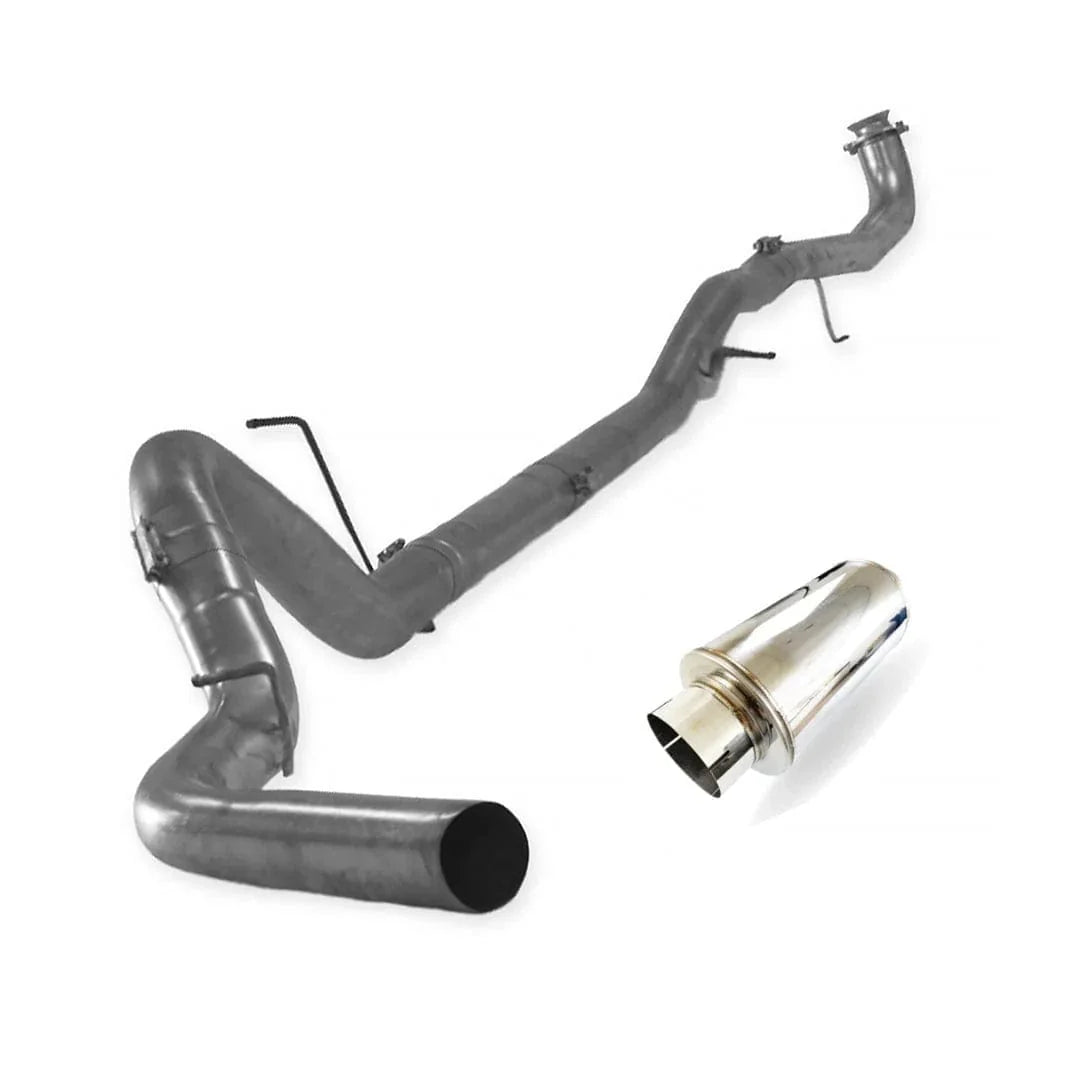

GM Duramax L5P 6.6L Downpipe-Back Exhaust System (2017-2026)

4.4 (9 reviews)
SKU: ESSS-GM-17-4-DD
$566.50 $825.00 On Sale
Choose Your Year
Select Exhaust System:
Exhaust Quality
Guaranteed safe checkout
American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa
Free shipping on tuners
Fitment guaranteed
Real diesel support
GM Duramax L5P 6.6L Downpipe-Back Exhaust System (2017-2026)
2017 - 2019 / 4-inch Downpipe-Back / 409 Stainless Steel
$566.50

Overview

The GM Duramax L5P 6.6L Downpipe-Back Exhaust System is designed for 2017-2026 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks equipped with the 6.6L Duramax L5P turbo diesel engine. Constructed from 16-gauge stainless steel, this system is available in 4-inch or 5-inch tubing, with or without an optional stainless steel muffler. It features a high-flow design, contour-bent hangers, and prewelded flanges for fitment across the applicable model-year ranges.


Vehicle Fitment

Item Information
Make Chevrolet, GMC
Models Silverado 2500HD, Silverado 3500HD, Sierra 2500HD, Sierra 3500HD
Model Years 2017-2026
Engine 6.6L Duramax V8 Turbo Diesel (L5P)
Cab and Bed Configurations EC, CC, SB, LB, and Dually
Exhaust Configuration Downpipe-back, single side exit

Fitment Notes

  • Choose the 2017-2019 or 2020-2026 version according to your truck's model year.
  • The 2020-2026 version features an OEM-style 4-bolt turbo flange.
  • Not compatible with Cab & Chassis models.

Available Configurations

Model Year Options

  • 2017-2019: Designed for applicable Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax L5P engine.
  • 2020-2026: Designed for applicable trucks in this model-year range and features an OEM-style 4-bolt turbo flange.

Pipe Diameter Options

  • 4-Inch Downpipe-Back: Suited to trucks used for towing and daily driving, with improved exhaust flow and a more restrained exhaust tone than the 5-inch version.
  • 5-Inch Downpipe-Back: Provides greater exhaust flow capacity and a deeper, more aggressive exhaust tone for built trucks and competition applications.

Muffler Options

  • No Muffler: Straight-through configuration designed for maximum flow and a louder exhaust tone.
  • With Muffler: Includes an optional stainless steel muffler for a more controlled exhaust tone.

Key Features

  • 16-Gauge Stainless Steel Construction: Built for strength and corrosion resistance.
  • 4-Inch or 5-Inch Tubing: Choose the diameter suited to your truck and intended application.
  • Optional Stainless Steel Muffler: Available with or without a muffler.
  • Downpipe-Back Design: Features a high-flow exhaust configuration.
  • OEM-Style Hangers: Contour-bent hangers support proper alignment with factory mounting points.
  • Prewelded Flanges: Designed to provide secure exhaust connections.
  • Stainless Steel Clamps: Included to secure exhaust connections.
  • Bung-Free Design: Provides a clean exhaust path without bungs.
  • Model-Specific Turbo Flange: The 2020-2026 version uses an OEM-style 4-bolt turbo flange.
  • Installation Hardware: Necessary hardware is included.

Technical Information

Item Information
Material 16-gauge stainless steel
Pipe Diameter 4-inch or 5-inch mandrel-bent tubing
Muffler Optional; with or without muffler
Configuration Downpipe-back, single side exit
Finish Natural brushed stainless steel
Hardware Stainless steel clamps, contour-bent hangers, and prewelded flanges
Design Bung-free, high-flow race exhaust system

Performance Benefits

  • Exhaust Flow: Designed to reduce exhaust restriction and support increased horsepower and torque.
  • Turbo Response: Improved exhaust flow supports turbo spool and throttle response.
  • Exhaust Gas Temperatures: Helps lower EGTs during towing and heavy-load operation.
  • Engine Breathing: Supports improved exhaust flow and engine efficiency.
  • Exhaust Sound: Produces a deep performance tone, with the sound level influenced by the selected pipe diameter and muffler configuration.
  • Durability: Stainless steel construction is designed for long-term use in demanding conditions.

Installation and Additional Information

  • Designed for bolt-on installation using factory hanger points.
  • No cutting or welding is required according to the supplied product information.
  • Professional installation is recommended.
  • The product is intended for off-road and race applications only.
  • The supplied product information states that off-road race tuning is required.

Frequently Asked Questions

Which model years does this exhaust system fit?

The system is available in two versions: 2017-2019 and 2020-2026. Both are designed for applicable Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks equipped with the 6.6L Duramax L5P engine. Select the version that matches your truck's model year.

Should I choose the 4-inch or 5-inch system?

The 4-inch system is suited to towing and daily driving, with a slightly more restrained exhaust tone. The 5-inch system provides greater airflow capacity and a deeper, more aggressive sound for built trucks and competition applications.

What is the difference between the muffler options?

The No Muffler option uses a straight-through configuration for maximum flow and volume. The With Muffler option adds a stainless steel muffler for a more controlled exhaust tone.

Is tuning required?

According to the supplied product information, off-road race tuning is required for the intended application.

Is all installation hardware included?

Yes. The system includes stainless steel clamps, contour-bent hangers, prewelded flanges, and the necessary installation hardware. The optional muffler is included when that configuration is selected.

Will this fit a Cab & Chassis truck?

No. This system is not compatible with Cab & Chassis models.
