| Years | Universal |
|---|---|
| Make | Ford, GM, Dodge Ram, Ram EcoDiesel, Jeep, Mercedes Benz, Nissan |
| Engine | Powerstroke, Duramax, Cummins, EcoDiesel, Sprinter, Universal |
| Displacement | 7.3L, 6.7L, 6.6L, 6.4L, 6.0L, 5.9L, 5.0L, 3.0L, LB7, LLY, LBZ, LMM, LML, L5P, L5D, LWN, LM2, LZ0, Universal, Grand Cherokee, Wrangler, Gladiator, C&C |
| Body | Pickup Truck, Cab and Chassis, Dual Rear Wheels, Van |

Overview

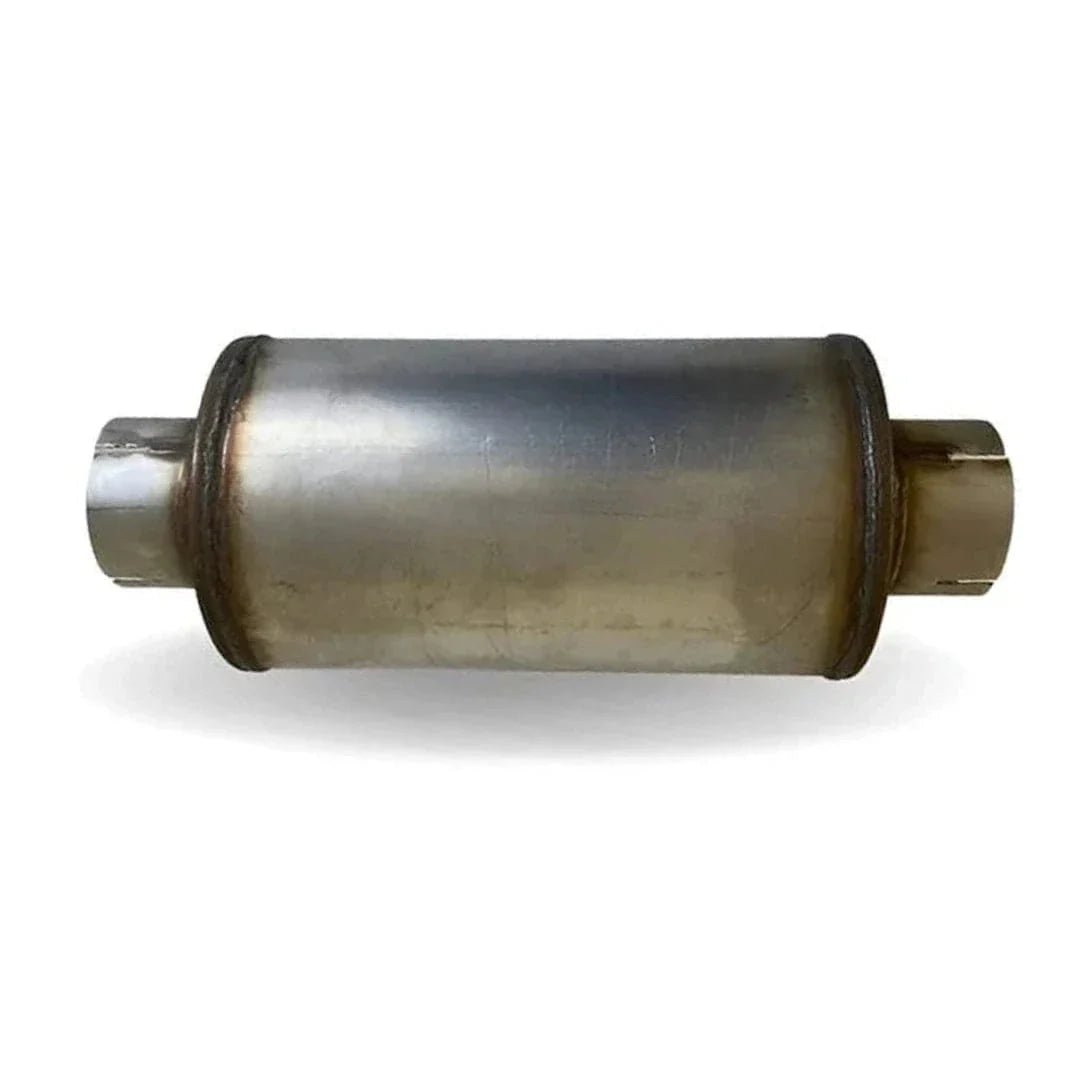

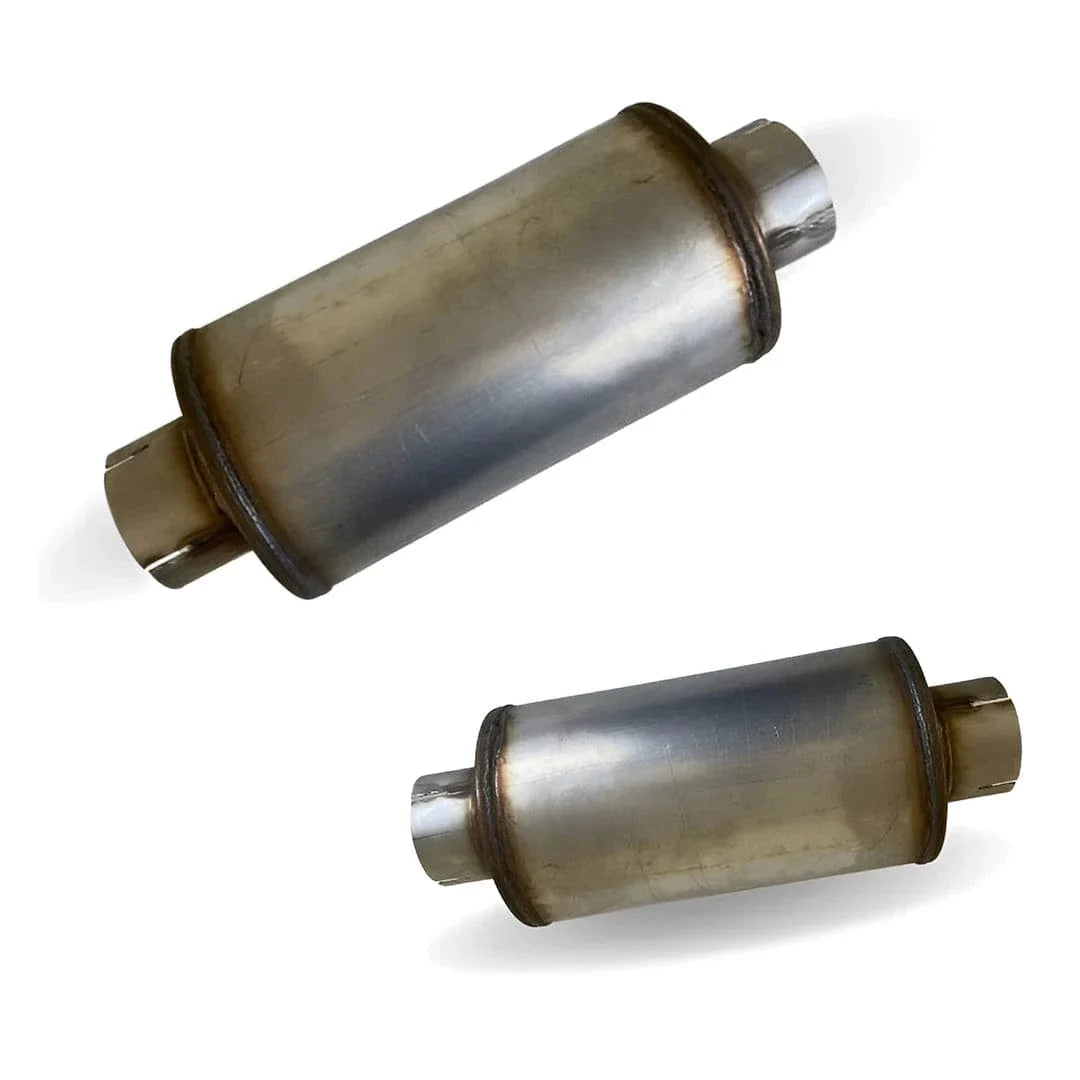

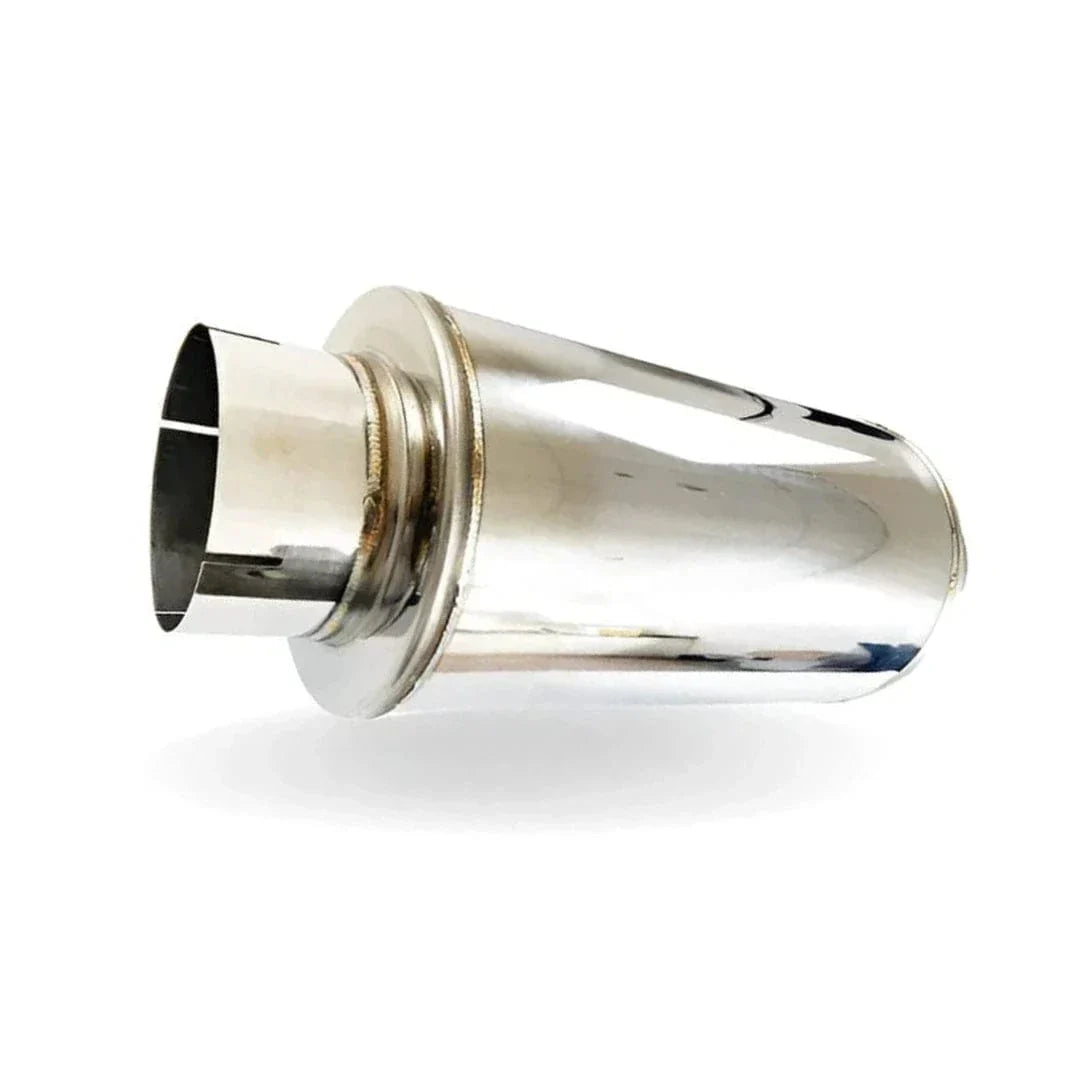

This stainless steel diesel muffler is a straight-through performance muffler designed for diesel trucks equipped with 4-inch or 5-inch exhaust systems. It features a perforated core, internal sound-absorbing materials, and a non-directional design that allows installation in either direction. Available in T304 or T409 stainless steel, it offers options for different corrosion-resistance requirements and budgets.
Key Features
- Two Diameter Options: Available with 4-inch or 5-inch inlet and outlet inner diameters to match the existing exhaust system.
- Straight-Through Core: Features a perforated internal core designed to support exhaust flow while reducing unwanted resonance.
- T304 or T409 Stainless Steel: Choose between enhanced corrosion resistance and a more economical exhaust-grade steel option.
- Non-Directional Design: Can be installed in either direction.
- Sound Control: Internal mesh and fiberglass packing help produce a deeper exhaust tone while absorbing sound.
- Universal Diesel Application: Suitable for compatible Cummins, Duramax, and Powerstroke diesel exhaust systems when pipe dimensions and vehicle clearance match.
Technical Specifications
| Item | 4-Inch Muffler | 5-Inch Muffler |
|---|---|---|
| Inlet Inner Diameter | 4 inches | 5 inches |
| Outlet Inner Diameter | 4 inches | 5 inches |
| Overall Length | 20.5 inches | 20.5 inches |
| Material Options | T304 or T409 stainless steel | T304 or T409 stainless steel |
| Core Design | Straight-through, non-directional | Straight-through, non-directional |
| Internal Packing | Mesh and fiberglass | Mesh and fiberglass |
| Installation Hardware | Not included | Not included |
304 vs. 409 Stainless Steel
| Feature | T304 Stainless Steel | T409 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Higher resistance, particularly in wet and road-salt environments | Suitable corrosion resistance for many exhaust applications |
| Appearance | Generally retains its finish longer | May develop surface discoloration over time |
| Price Range | Premium option | More economical option |
| Recommended Application | Wet climates, road-salt exposure, and visible exhaust installations | Value-focused builds and moderate operating environments |
Performance Benefits
- Exhaust Flow: The straight-through core is designed to minimize flow restriction compared with more restrictive muffler designs.
- Exhaust Sound: Produces a deep, throaty tone while helping reduce harsh resonance compared with an unmuted exhaust configuration.
- Durable Construction: Stainless-steel options provide durability for demanding exhaust temperatures and operating conditions.
- Flexible Installation: The non-directional body accommodates different exhaust layouts when adequate clearance is available.
Vehicle Compatibility
This universal diesel muffler is intended for compatible Cummins, Duramax, and Powerstroke applications, including classic and late-model diesel trucks. Fitment depends on matching the muffler diameter to the existing exhaust piping and verifying available installation space.
Fitment Note
- Select the 4-inch or 5-inch version to match the exhaust pipe's inner diameter.
- Verify overall length, connection dimensions, and vehicle clearance before ordering.
- Compatibility can vary by exhaust configuration; confirm fitment with the vehicle selector or a qualified installer.
Installation & Additional Details
The muffler is non-directional and can be installed in either orientation. It directly replaces a muffler-delete pipe of matching diameter.
- Installation hardware and clamps are not included.
- Welding or separately purchased clamps may be required, depending on the existing exhaust setup.
- Inspect surrounding components and verify adequate clearance before completing installation.
- Installation should comply with applicable exhaust-noise and emissions regulations.
Build Your Diesel Exhaust System
Pair the muffler with compatible exhaust components to complete your setup.
- 4-Inch and 5-Inch Diesel Exhaust Systems — exhaust systems in matching diameters.

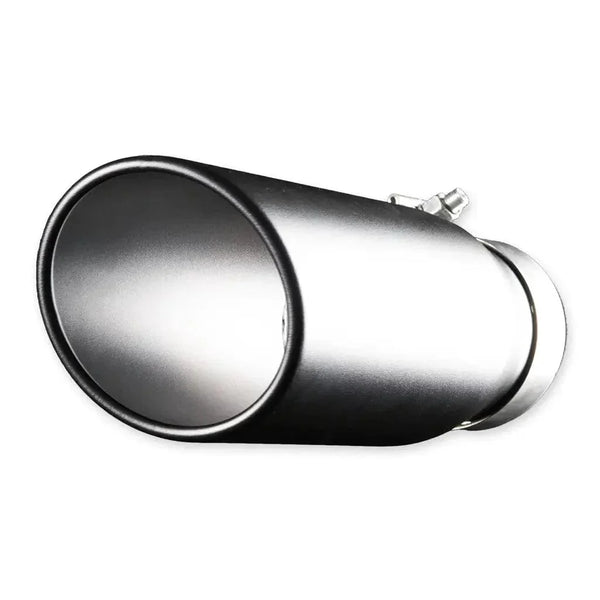

- T304 Stainless Steel Exhaust Tip — an optional finishing component for the exhaust outlet.
Frequently Asked Questions
Does a diesel truck need a muffler?
A muffler helps control exhaust noise and shapes the sound of a diesel truck. A straight-through performance muffler is designed to balance exhaust flow with sound reduction. Check local vehicle-noise and exhaust-equipment requirements.
Should I choose a 4-inch or 5-inch diesel muffler?
Choose the size that matches your existing exhaust pipe diameter. The 4-inch version is intended for 4-inch piping, while the 5-inch version is intended for 5-inch piping. Both have an overall length of 20.5 inches.
Is T304 or T409 stainless steel better?
T304 generally offers better corrosion resistance, making it suitable for wet climates and areas with road salt. T409 is a more economical exhaust-grade stainless steel commonly used in automotive exhaust applications.
Will this muffler fit my Cummins, Duramax, or Powerstroke?
It can fit compatible Cummins, Duramax, and Powerstroke diesel exhaust systems when the inlet and outlet diameters, overall length, and available clearance match the vehicle's configuration. Verify fitment before purchasing.
What does a straight-through diesel muffler sound like?
It is designed to produce a deeper, fuller exhaust tone. Its internal perforated core and sound-absorbing packing help manage exhaust resonance.
Does the muffler have a required installation direction?
No. Its non-directional design allows installation in either direction, provided the installation arrangement and available clearance are suitable.
Does the muffler include clamps or installation hardware?
No. Clamps and installation hardware are not included. Depending on the existing exhaust configuration, welding or separately purchased clamps may be required.
Can this muffler replace a muffler-delete pipe?
Yes. It directly replaces a muffler-delete pipe of matching diameter. Choose the 4-inch or 5-inch version to match your exhaust piping.
What other components may be needed for a complete exhaust system?
Depending on the vehicle and exhaust configuration, you may need compatible exhaust piping, hangers, clamps, and an exhaust tip. Browse the diesel exhaust systems collection to explore compatible options.
