Overview
The Ford Powerstroke 6.0L Coolant Filtration System is a bypass filtration kit designed for 2003–2007 Ford 6.0L Powerstroke diesel engines. It captures casting sand, metal shavings, and mineral deposits from the coolant before they can damage critical cooling system components, including the water pump, EGR cooler, and oil cooler. The system features a CNC-machined anodized billet aluminum filter block, pre-assembled silicone hoses, and a replaceable screw-off filter element.
Vehicle Fitment
| Item | Information |
|---|---|
| Make | Ford |
| Engine | 6.0L Powerstroke Diesel |
| Model Years | 2003–2007 |

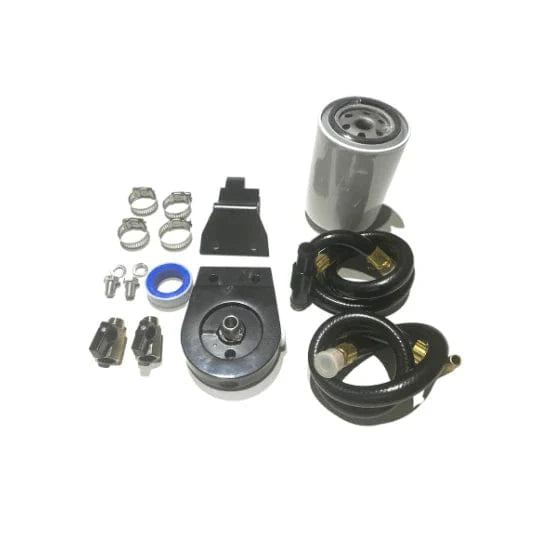

What's Included
- Coolant Filter: Replaceable filter element that unscrews for convenient replacement.
- Filter Block: CNC-machined anodized billet 6061 aluminum construction.
- Mounting Bracket: Uses factory mounting holes without requiring drilling.
- Silicone Hoses: Pre-assembled fittings tested to withstand more than double the recommended radiator cap pressure.
- Installation Hardware: Includes the hardware needed for installation.
Key Features
- CNC-Machined Billet Aluminum Filter Block: Made from solid 6061 aluminum billet and anodized for added durability.
- Factory Mounting Points: The included bracket uses existing factory holes, so drilling is not required.
- Pre-Assembled Silicone Hose Fittings: Connections are designed to prevent leaks and have been tested to withstand more than double the recommended radiator cap pressure.
- Replaceable Filter Element: The screw-off design allows straightforward filter changes.
- Bypass Filtration Design: Continuously filters coolant contaminants while maintaining coolant flow.
Technical Information
| Item | Information |
|---|---|
| Filter Block Material | CNC-machined anodized solid billet 6061 aluminum |
| Hose Material | High-strength, abrasion-resistant silicone |
| Mounting | Factory mounting holes with included bracket |
| Filter Type | Replaceable screw-off filter element |
Performance Benefits
- Cooling System Protection: Captures casting sand, metal shavings, and mineral deposits before they can damage the water pump, EGR cooler, and oil cooler.
- Continuous Contaminant Filtration: The bypass design filters contaminants from the coolant while maintaining coolant flow.
- Convenient Maintenance: The replaceable filter element unscrews for straightforward servicing.
Installation and Maintenance
- Mounts to factory holes using the included bracket; no drilling is required.
- All installation hardware is included.
- Pre-assembled silicone hose fittings are supplied for installation.
Filter Replacement Schedule
- First replacement: After 500 miles.
- Second replacement: After another 3,000 miles.
- Third replacement: After another 3,000 miles.
- Subsequent replacements: Once per year.
Frequently Asked Questions
When should I change the coolant filter?
Replace the first filter after 500 miles. Replace the second and third filters every 3,000 miles, then replace the filter once per year.
Is drilling required for installation?
No. The filter block mounts to factory holes using the included mounting bracket.
What contaminants does the filter capture?
The system captures casting sand, metal shavings, and mineral deposits that accumulate in the coolant.
Which components does the system help protect?
It helps protect the water pump, EGR cooler, and oil cooler by filtering contaminants from the coolant.
Is all installation hardware included?
Yes. The kit includes the coolant filter, filter block, mounting bracket, silicone hoses, and installation hardware.
