| Years | 2023-2026 |
|---|---|
| Make | Ford |
| Engine | Powerstroke |
| Displacement | 6.7L |
| Body | Pickup Truck, Dual Rear Wheels |

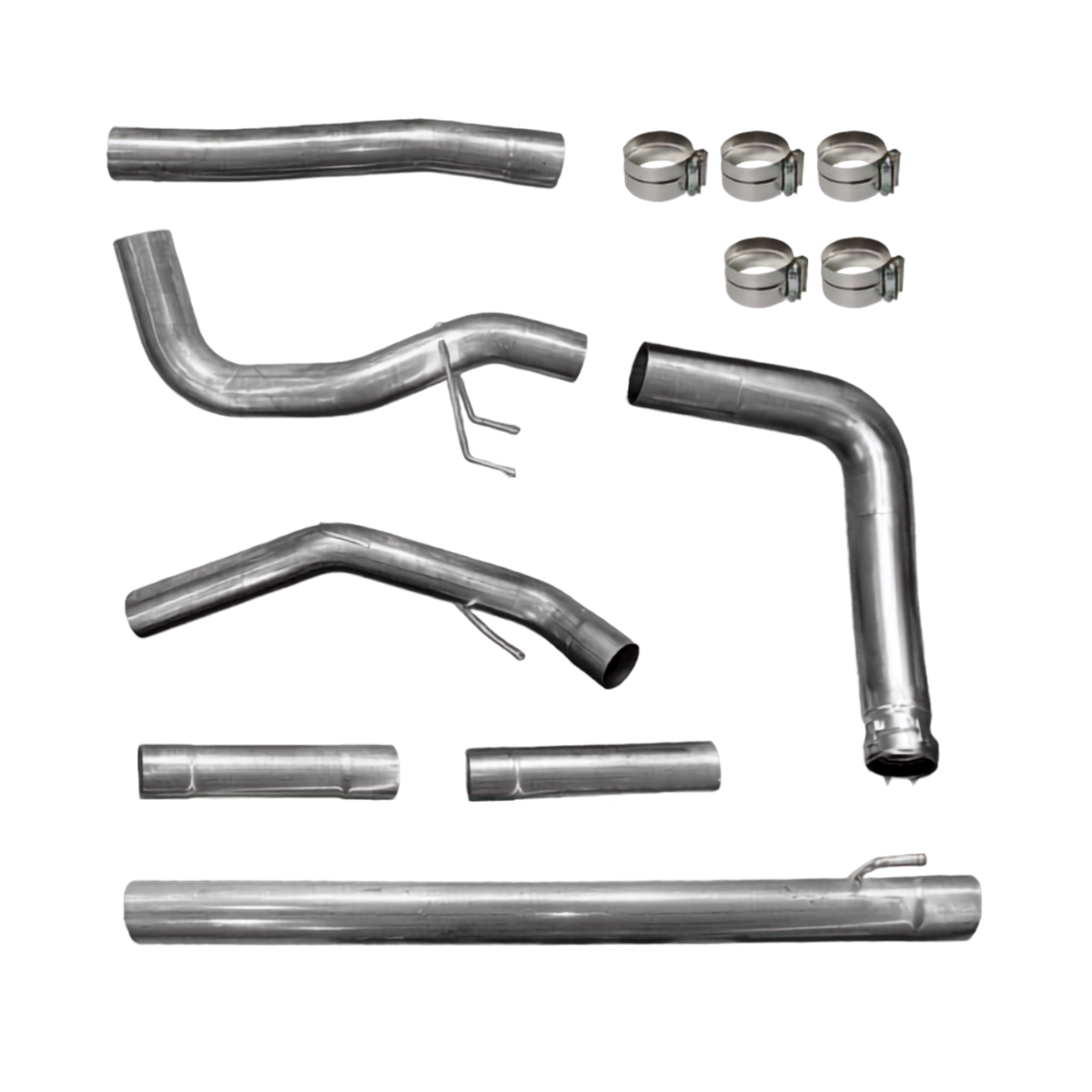

2023–2026 FORD F250 F350 6.7L Powerstroke Exhaust System

Overview
This turbo-back exhaust system is designed for 2023-2026 Ford F-250 and F-350 Super Duty trucks equipped with the 6.7L Powerstroke diesel engine. Available with 4-inch or 5-inch mandrel-bent piping, it extends from the turbocharger outlet to the tailpipe.
The system is available in aluminized or stainless steel construction, with an optional performance muffler for either pipe diameter. Fitment is limited to F-250 and F-350 pickup configurations.
Vehicle Fitment
| Model Year | Make / Model | Engine | Body Style | Fitment |
|---|---|---|---|---|
| 2023-2026 | Ford F-250 Super Duty | 6.7L Powerstroke | Pickup | Yes |
| 2023-2026 | Ford F-350 Super Duty | 6.7L Powerstroke | Pickup | Yes |
| 2023-2026 | Ford F-450 Super Duty | 6.7L Powerstroke | Pickup / Chassis | No |
| 2023-2026 | Ford F-250 / F-350 | 6.7L Powerstroke | Cab & Chassis | No |
Important: This system fits 2023-2026 Ford F-250 and F-350 6.7L Powerstroke pickups only, will fit single or dual rear wheel axle. It does not fit F-450, Cab & Chassis, or pre-2023 models due to differences in exhaust routing and hanger geometry.
Choosing Between 4-Inch and 5-Inch Piping
4-Inch Turbo-Back Exhaust
The 4-inch option offers a balance of exhaust flow and low-RPM exhaust velocity. It is suited to trucks with stock or mildly upgraded turbochargers and provides a deeper exhaust tone without as much cabin volume as the larger diameter option.
5-Inch Turbo-Back Exhaust
The 5-inch option is designed for increased exhaust flow and is suited to builds with larger turbochargers, higher fuelling, and aggressive tuning. It produces a louder, more aggressive exhaust tone throughout the RPM range.
Key Features
- Complete turbo-back coverage from the turbocharger outlet to the tailpipe
- Available in 4-inch or 5-inch mandrel-bent piping
- Aluminized or stainless steel construction, depending on kit selection
- OE-style hanger placement for 2023-2026 Super Duty pickup configurations
- Straight-through layout
- Optional performance muffler available for both pipe diameters
Performance Benefits
- Reduced backpressure across the exhaust system
- Lower exhaust gas temperatures under sustained load
- Quicker turbo spool and sharper throttle response
- Deeper exhaust tone, with sound levels depending on the selected diameter
- Heavy-duty materials intended for long-term off-road service
Technical Information
| Item | 4-Inch Variant | 5-Inch Variant |
|---|---|---|
| Pipe Diameter | 4 inches | 5 inches |
| System Type | Turbo-back | Turbo-back |
| Material | Aluminized or stainless steel | Aluminized or stainless steel |
| Bend Type | Mandrel-bent | Mandrel-bent |
| Mounting | OE-style hanger locations | OE-style hanger locations |
| Recommended Setup | Stock to mildly upgraded turbo | Larger turbo and higher-fuelling builds |
| Muffler Option | Available | Available |
| Fitment | 2023-2026 F-250 / F-350 pickup | 2023-2026 F-250 / F-350 pickup |
Installation Notes
- Uses factory hanger locations on 2023-2026 Super Duty pickups.
- Installation can be performed with basic hand tools. A lift or jack stands and a second person can make installation easier.
- Allow the exhaust system to cool completely before beginning work.
- Verify tailpipe clearance around the rear tire and bumper before final tightening.
Use Restriction: Sold for closed-course competition and off-road use only. The source description states that it is not legal for use on emissions-controlled vehicles operated on public roads.
Frequently Asked Questions
Does this exhaust fit a 2024 Ford F-250 6.7L Powerstroke?
Yes. It fits 2023-2026 Ford F-250 and F-350 6.7L Powerstroke pickup models. It does not fit F-450 or Cab & Chassis configurations.
What is the difference between turbo-back and downpipe-back exhaust?
A turbo-back system starts at the turbocharger outlet and includes the downpipe, replacing the exhaust sections behind the turbo. A downpipe-back system starts further downstream and reuses the factory downpipe. This product is a complete turbo-back system.
Should I choose the 4-inch or 5-inch exhaust?
The 4-inch option is suited to stock or mildly upgraded turbochargers and offers a balance of exhaust flow and low-RPM velocity. The 5-inch option is suited to larger turbochargers and higher-fuelling builds where maximum flow is a priority.
Why does this exhaust not fit F-450 or Cab & Chassis trucks?
F-450 and Cab & Chassis models use different frame lengths, exhaust routing, and hanger positions. This system is designed specifically for F-250 and F-350 pickup configurations.
Will this fit a 2022 or earlier Powerstroke?
No. This system is designed for 2023-2026 Ford F-250 and F-350 6.7L Powerstroke pickups.
How much louder will the truck be?
The exhaust produces a deeper tone that becomes more pronounced under load. The 5-inch variant is louder than the 4-inch option. The optional muffler reduces volume on either diameter.
Is this exhaust legal for street use?
The product is sold for closed-course competition and off-road use only. The source description states that it is not legal for use on emissions-controlled vehicles operated on public roads.
Shipping
Free shipping on tuners. We aim to dispatch in-stock orders within 2 business days. Most North American orders arrive within 2–7 business days after dispatch via expedited ground. International orders typically take 5–14 business days, depending on destination and customs.
Transit time starts when your order ships, not when you place it. Weekend orders are processed the next business day. Orders shipping outside Canada may be subject to import duties and taxes, which are the customer’s responsibility on delivery. See our shipping policy for full details.
Items Eligible for Return
These items can be returned within 30 days of the purchase date if they are unopened, unused, and in their original packaging:
- Tuning devices: an unopened, unused Mini Maxx V1/V2 or a blank EFI Live device.
- Cables and device accessories: an unopened, unused switch, bypass cable, universal pyrometer, or docking station.
Final Sale
The following items are final sale and cannot be returned:
- Custom tuning: additional tune files purchased separately, and custom tuning purchased with a device.
- Exhausts and race pipes: including downpipes purchased separately from an exhaust or race pipe.
- EGR kits.
Manufacturer Warranty
Every item we sell includes a 90-day manufacturer warranty. An item returned for a manufacturer defect can be refunded in full, exchanged, or replaced with a similar item of equal or lesser value.
Eligible items returned for any other reason follow the same options — a full refund, an exchange, or a replacement of equal or lesser value — as long as the item meets the requirements above.
Return Process
Every return must be approved before it is sent back. Email support@dynamicdiesels.com or call 1-877-600-5667 and we’ll issue a valid Return Merchandise Authorization (RMA) number and a prepaid return label.
Do not send anything back without an approved RMA and the return label we provide. Returns sent without both will not be accepted or processed. See our refund policy for full details.
Warranty
All tuning devices come with a 90-day manufacturer’s warranty from the date of delivery. You have a full 90 days from delivery to start a warranty claim if an issue arises. We also honor all applicable manufacturer warranties on the products we sell; coverage period and claim process vary by brand and product category.
To start a claim, email support@dynamicdiesels.com or call 1-877-600-5667 with your order number. We may ask a few questions about the device to confirm the fault, and we may request proof of communication with the manufacturer, as they are often the primary contact for device issues.
Once your claim is approved, you can choose one of the following:
- Return for replacement: Send us the faulty device, and once we receive it we’ll dispatch a replacement of the same or a similar device of equal or lesser value.
- Return for refund: Return the faulty device and we’ll refund the original payment method. Please allow 3–4 business days for the refund to appear.
- Return for gift card: Receive a gift card for the faulty device, sent to the email on file and available to use right away.
You’ll receive a Return Merchandise Authorization (RMA) number and a prepaid return label to send the faulty device back. See our refund policy for full details.
Related products

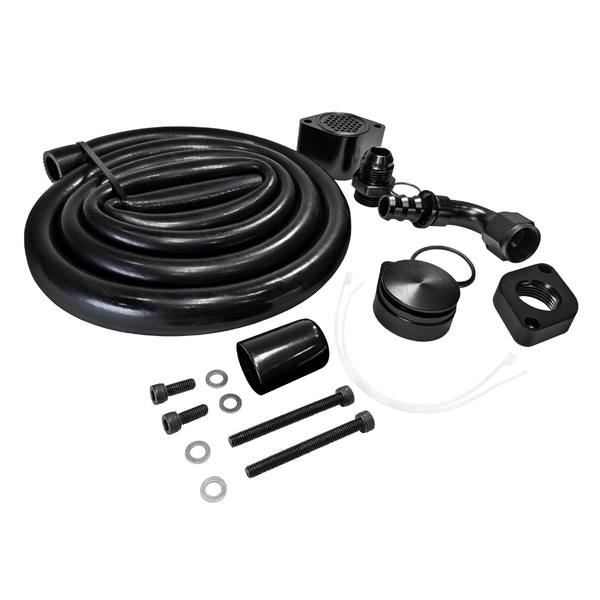

Ford Powerstroke 6.7L - CCV Upgrade Kit
Fits 2011–2025

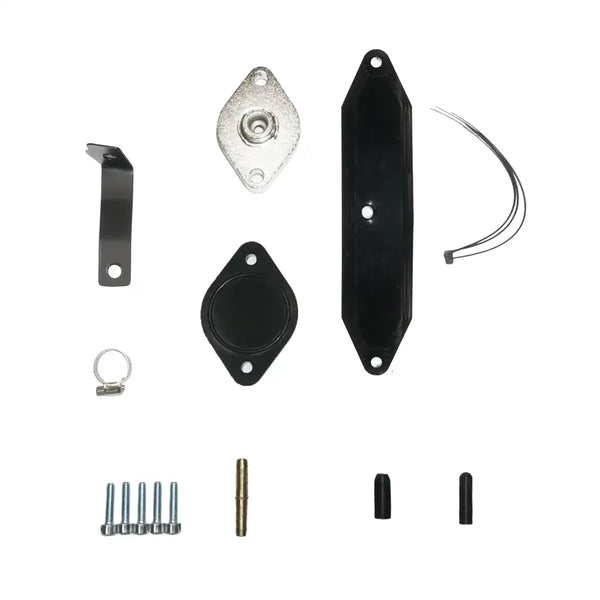

Ford Powerstroke 6.7L EGR & Cooler Kit
