Overview
The Ford Powerstroke 6.7L Coolant Filtration System (2011-2016) is a bypass filtration system designed for Ford trucks equipped with the 6.7L Powerstroke diesel engine. It filters contaminants such as casting sand, metal shavings, and rust from the coolant to help protect the water pump, oil cooler, and EGR cooler.
Vehicle Fitment
- Model Years: 2011, 2012, 2013, 2014, 2015, 2016
- Make: Ford
- Engine: 6.7L Powerstroke Diesel

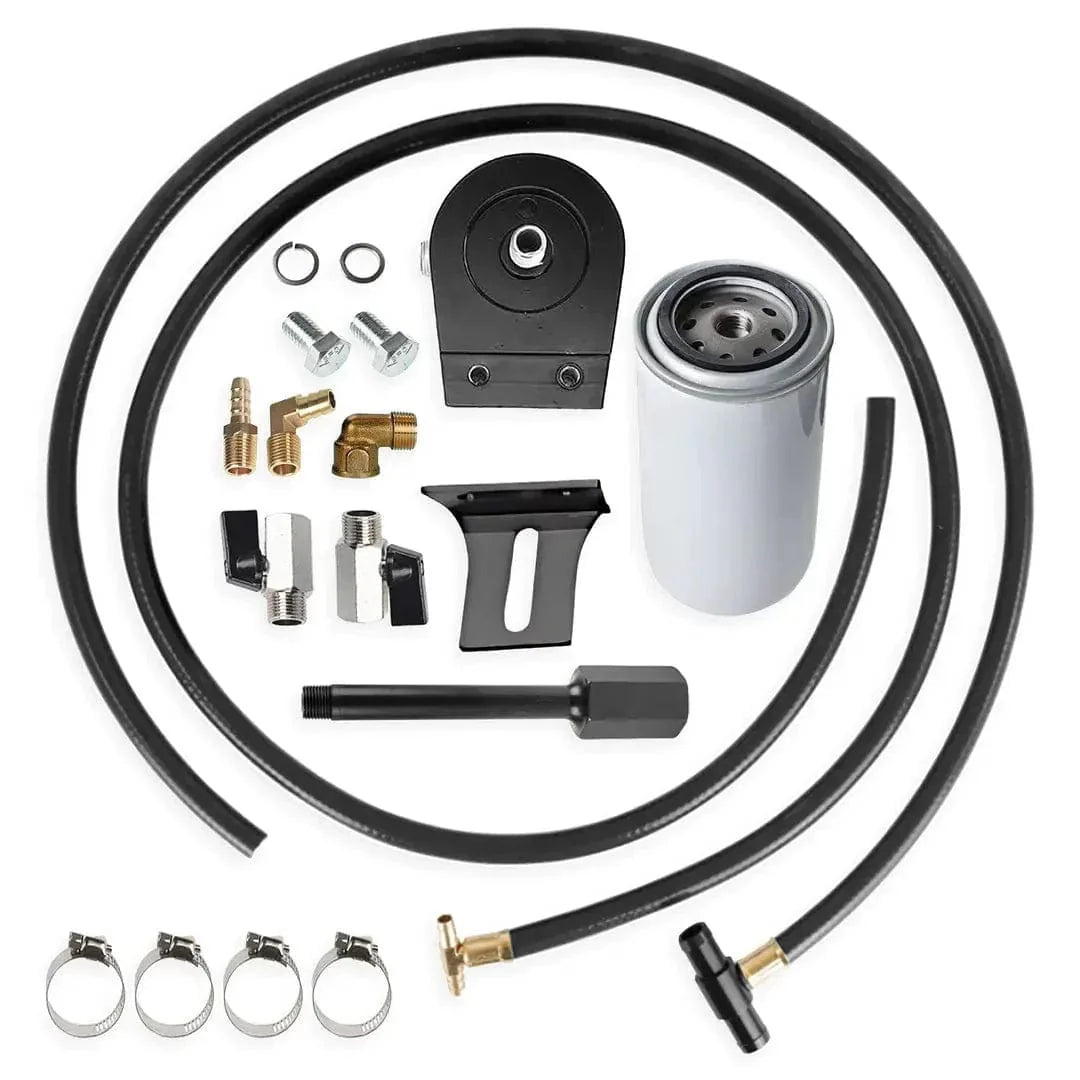

What's Included
- Coolant Filter: Replaceable filter element.
- Filter Block: CNC-machined billet 6061 aluminum construction.
- Mounting Bracket: Supplied bracket designed for installation without drilling.
- Silicone Hoses: Pre-assembled fittings tested to withstand more than twice the recommended radiator cap pressure.
- Installation Hardware: Hardware included for installation.
Technical Specifications
| Specification | Detail |
|---|---|
| Filter Block Material | CNC-machined solid billet 6061 aluminum |
| Hose Material | High-strength silicone |
| System Type | Bypass coolant filtration |
| First Filter Change | 500 miles |
| Next Two Filter Changes | Every 3,000 miles |
| Ongoing Filter Changes | Once per year |
| Installation Hardware | Complete installation kit included |
Key Features
- CNC-Machined Billet Aluminum Filter Block: Made from solid 6061 aluminum for precise fit and durability.
- Supplied Mounting Bracket: Designed to mount without drilling additional holes.
- Pre-Assembled Silicone Hose Fittings: Tested to withstand more than twice the recommended radiator cap pressure.
- Screw-Off Filter Element: Designed for quick filter replacement without tools.
- Bypass Filtration Design: Filters coolant contaminants while maintaining coolant flow through the system.
Benefits
- Contaminant Removal: Helps filter casting sand, metal shavings, and rust from the coolant.
- Component Protection: Helps protect the water pump, oil cooler, and EGR cooler from contamination.
- Convenient Maintenance: The screw-off filter element simplifies scheduled filter replacement.
- Simplified Installation: The supplied bracket, hoses, and hardware are included for installation without drilling.
Installation Notes
- Mount the filter block to the supplied bracket; no drilling is required.
- All specified installation hardware is included.
- Change the first filter at 500 miles.
- Change the next two filters every 3,000 miles.
- After the first three changes, replace the filter once per year.
Frequently Asked Questions
When should I change the coolant filter?
Change the first filter at 500 miles, the next two filters every 3,000 miles, and then replace the filter once per year.
Do I need to drill holes for installation?
No. The filter block mounts to the supplied bracket, so additional drilling is not required.
What contaminants does the filter remove?
The filter is designed to capture casting sand, metal shavings, and rust that can accumulate in the coolant.
Which components does the system help protect?
The system helps protect the water pump, oil cooler, and EGR cooler from coolant contamination.
Is all installation hardware included?
Yes. The package includes the coolant filter, filter block, mounting bracket, silicone hoses, and installation hardware.
Note:
- Verify vehicle compatibility before ordering.
- Follow the specified filter replacement intervals.
