| Years | 2017-2024 |
|---|---|
| Make | GM |
| Engine | Duramax |
| Displacement | L5P |
| Body | Pickup Truck, Cab and Chassis, Dual Rear Wheels |
GM 6.6L Duramax L5P High Flow Y-Bridge 3.5 Inch | 2017-2024

Overview

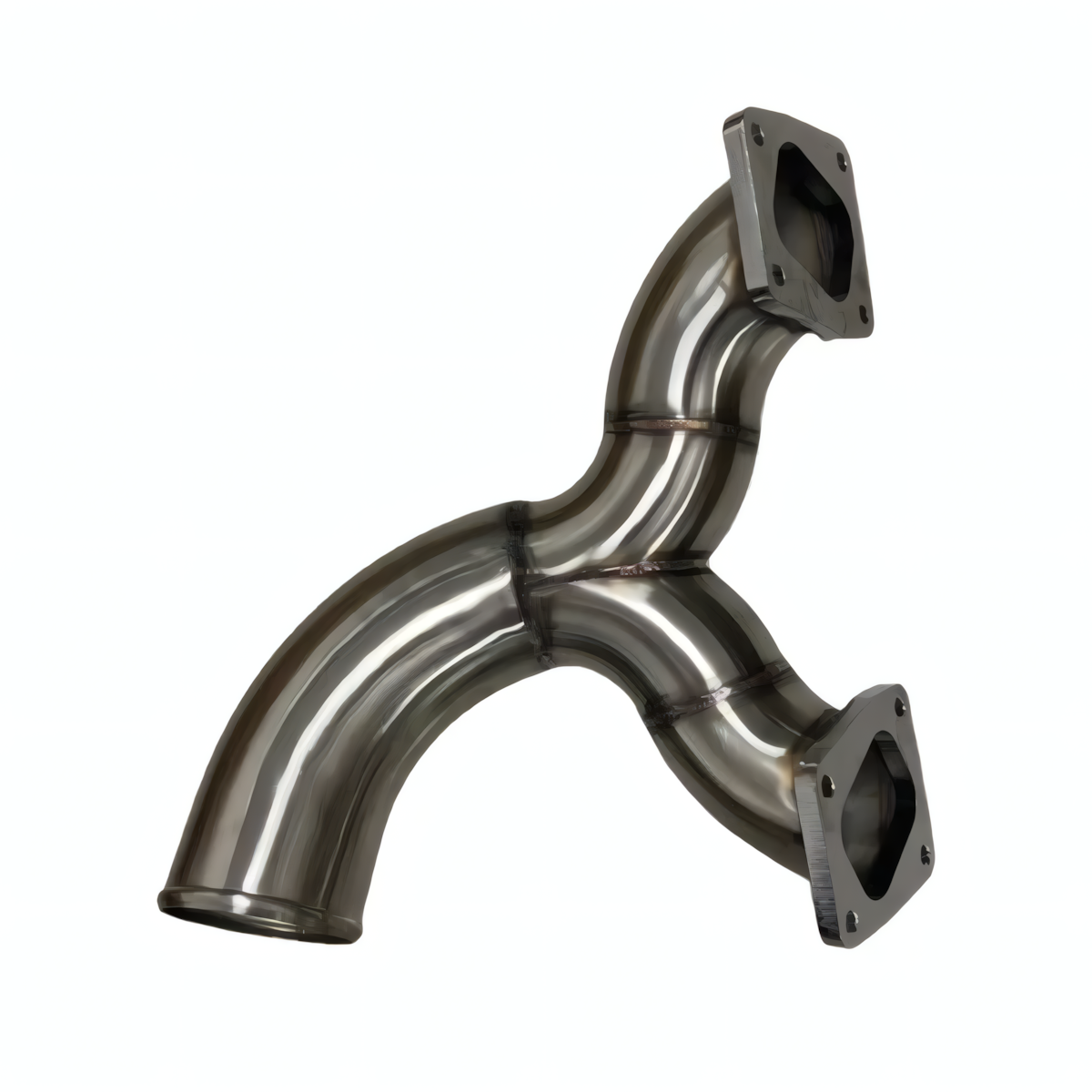

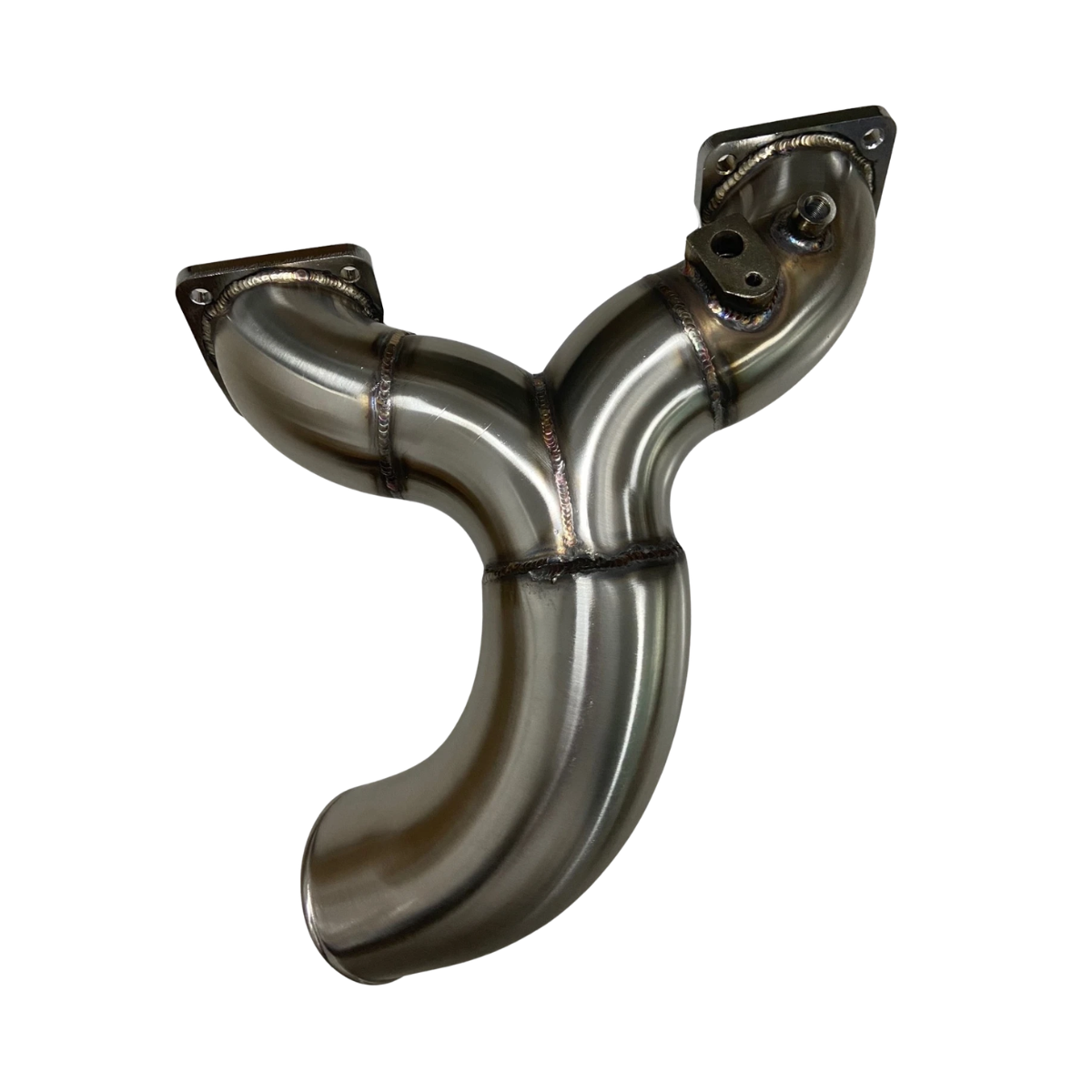

The GM 6.6L Duramax L5P High Flow Y-Bridge is a 3.5-inch intake upgrade designed for 2017-2024 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks equipped with the 6.6L Duramax L5P engine. Constructed from 304 stainless steel with TIG-welded construction, it is designed to increase airflow for builds using an aftermarket turbocharger and custom charge piping.
The Y-bridge features a bead-rolled inlet for coupler retention and includes provisions for the factory MAP sensor and 1/8-inch NPT accessories.
Vehicle Fitment
| Make | Model | Model Years | Engine |
|---|---|---|---|
| Chevrolet | Silverado 2500HD | 2017-2024 | 6.6L Duramax L5P |
| Chevrolet | Silverado 3500HD | 2017-2024 | 6.6L Duramax L5P |
| GMC | Sierra 2500HD | 2017-2024 | 6.6L Duramax L5P |
| GMC | Sierra 3500HD | 2017-2024 | 6.6L Duramax L5P |
Key Features
- 3.5-Inch High-Flow Design: Increases airflow compared with the factory Y-bridge.
- 304 Stainless Steel Construction: TIG-welded stainless steel construction.
- Bead-Rolled Inlet: Designed for secure coupler retention.
- Aftermarket Turbo Compatibility: Designed for builds using aftermarket turbochargers and custom charge piping.
- OEM Intake Runner Mounting: Bolts to the factory intake runners using existing OEM hardware and seals.
- Sensor and Accessory Ports: Includes a factory MAP sensor bung and a 1/8-inch NPT accessory bung for applications such as boost monitoring, methanol injection, or data logging.
Technical Information
| Item | Information |
|---|---|
| Material | 304 stainless steel |
| Inlet Diameter | 3.5 inches |
| Construction | TIG welded |
| Sensor Ports | Factory MAP sensor bung and 1/8-inch NPT accessory bung |
| Finish | Raw stainless steel |
Performance Benefits
- Increased Airflow: Addresses the factory intake restriction when additional air and fuel are added.
- Higher Boost Support: Designed to support higher-boost applications and aggressive tuning.
- Steadier Intake Flow: Supports consistent intake airflow under load.
- Coupler Retention: The bead-rolled inlet helps reduce the risk of coupler blow-off.
- Heat Resistance: Designed for high-heat and race conditions.
Installation Notes
- Bolts to OEM intake runners using existing OEM hardware and seals.
- Requires an aftermarket turbocharger, custom charge piping, and custom fabrication.
- Not compatible with the factory turbo or OEM intercooler piping.
- Tuning is not required for installation but is strongly recommended for aftermarket turbo setups.
- For race and off-road use only.
Frequently Asked Questions
Is this a direct replacement for the factory Y-bridge?
No. This is a performance upgrade for custom builds and requires custom fabrication, aftermarket intercooler piping, and often custom tuning.
Will it work with the factory turbo?
No. It is designed for aftermarket turbo setups only.
Does it include sensor provisions?
Yes. It includes a bung for the factory MAP sensor and a 1/8-inch NPT accessory port.
Is tuning required?
Tuning is not required for installation but is strongly recommended for aftermarket turbo setups.
Additional Information
Important Note: This Y-bridge will not work with the factory turbo and requires custom fabrication. It is intended for builds utilizing an aftermarket turbocharger and charge piping.
