| Years | 2017-2019 |
|---|---|
| Make | GM |
| Engine | Duramax |
| Displacement | 6.6L, L5P |
| Body | Pickup Truck, Cab and Chassis, Dual Rear Wheels |

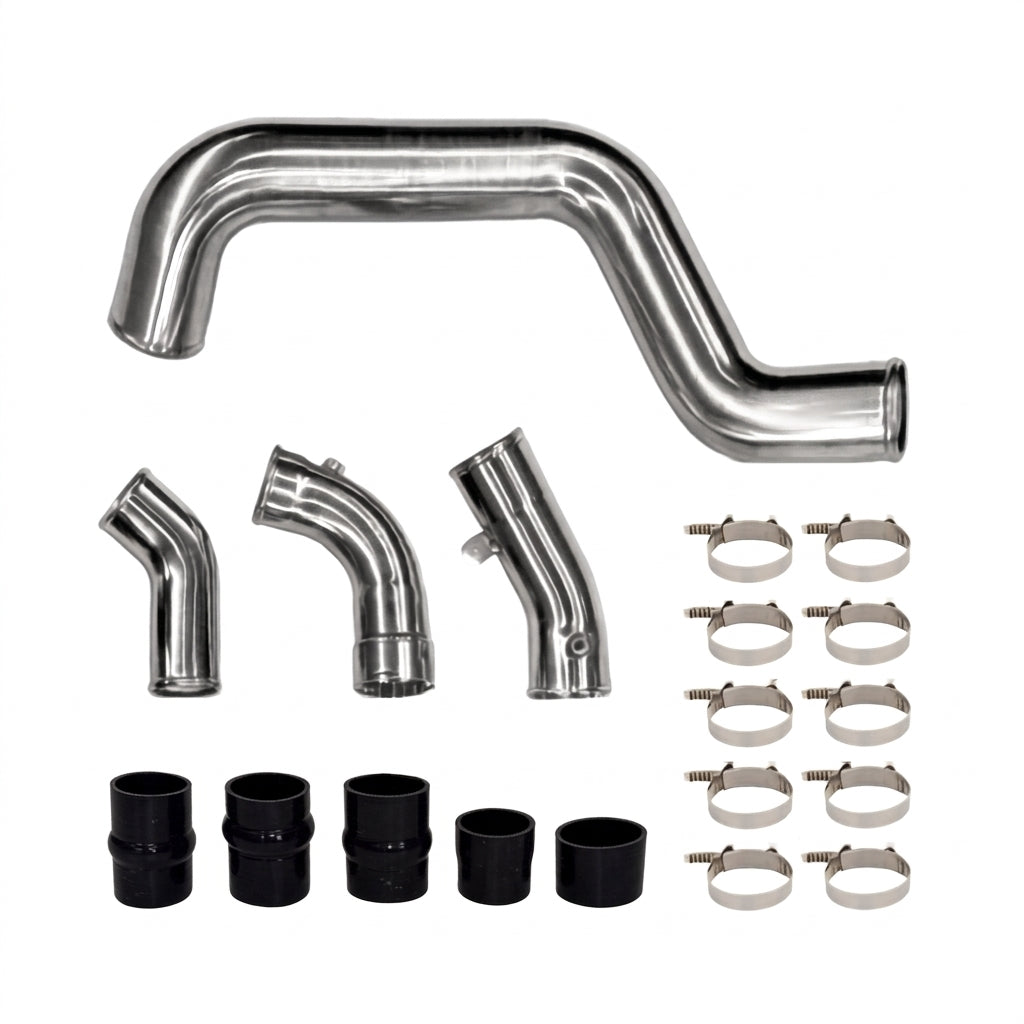

2017-2019 6.6L Duramax L5P Intercooler Pipe & Boot Kit | Chevrolet Silverado & GMC Sierra 2500HD/3500HD

Overview
The 2017-2019 6.6L Duramax L5P Intercooler Pipe & Boot Kit is a direct-fit replacement for the factory hot-side and cold-side intercooler pipes on compatible Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks. The kit upgrades the factory 2.5-inch piping to 3-inch piping with smoother transitions and removes the factory hot-side resonator.
Designed to improve charge-air flow and reduce restriction, the kit includes silicone boots, constant-tension T-bolt clamps, and hardware for the cold-side quick-disconnect fitting. No tuning or recalibration is required for operation with factory engine parameters.
Vehicle Compatibility
- 2017-2019 Chevrolet Silverado 2500HD - 6.6L Duramax L5P
- 2017-2019 Chevrolet Silverado 3500HD - 6.6L Duramax L5P
- 2017-2019 GMC Sierra 2500HD - 6.6L Duramax L5P
- 2017-2019 GMC Sierra 3500HD - 6.6L Duramax L5P
Fitment Note: This kit does not fit 2020 and newer L5P trucks or earlier Duramax engine families, including LB7, LLY, LBZ, LMM, and LML.
Key Features
- 3-inch Piping: Upgrades the factory 2.5-inch hot-side and cold-side piping to 3 inches throughout, with smoother transitions.
- Resonator-Free Hot Side: The replacement hot-side pipe does not retain the factory hot-side resonator.
- Two-Piece Pipe Design: Both the hot side and cold side consist of two sections to simplify positioning during installation.
- Silicone Boots: Includes boots with a synthetic inner liner designed for resistance to heat, pressure, fuel, and oil.
- Constant-Tension T-Bolt Clamps: Designed to maintain clamping load as the connections experience repeated heat cycles.
- CNC-Machined Quick-Disconnect Fitting: The cold-side connection includes a new O-ring and spring clip.
- Factory IAT Harness Mounting: Retains the factory intake air temperature sensor harness mounting location.
- Two Sensor Bungs: Can be drilled and tapped for boost, temperature, or other monitoring sensors.
Performance Benefits
- Increased charge-air flow between the turbocharger, intercooler, and intake.
- Reduced pressure drop across the charge-piping system.
- Supports greater power potential on tuned or heavily loaded trucks.
- Boots and clamps designed to resist slippage and leaks during repeated heat cycling.
- Sensor provisions allow for boost and intake air temperature monitoring at the pipes.
Technical Information
| Item | Information |
|---|---|
| Pipe Diameter | 3 inches throughout; factory piping measures 2.5 inches |
| Flow Restriction | Up to 55% less restrictive than stock |
| Pipe Configuration | Two-piece hot side and two-piece cold side |
| Couplers | Silicone boots with synthetic oil- and heat-resistant inner liner |
| Clamps | Constant-tension T-bolt clamps |
| Sensor Provisions | Two bungs for drilling and tapping |
| Fitment | 2017-2019 Chevrolet Silverado and GMC Sierra 2500HD / 3500HD with 6.6L Duramax L5P |
What's Included
- Hot-side intercooler piping
- Cold-side intercooler piping
- Silicone boots
- Constant-tension T-bolt clamps
- Cold-side quick-disconnect fitting O-ring and spring clip
The intercooler itself is not included. The factory intake air temperature sensor and its harness must be transferred to the replacement piping.
Installation Notes
- Designed as a direct bolt-on replacement for the factory intercooler piping.
- The two-piece design on both sides simplifies removal and installation in the engine bay.
- Transfer the factory intake air temperature sensor and harness to the new piping.
- No tuning or recalibration is required for operation with factory engine parameters.
- Boots, T-bolt clamps, and the quick-disconnect O-ring and spring clip are supplied with the kit.
Frequently Asked Questions
Do I need custom tuning or a programmer after installation?
No. The kit is designed as a direct bolt-on replacement that works with factory engine parameters, so no tuning or recalibration is required. If the truck is already tuned, changing the piping alone does not require a revised calibration.
Will this kit fix or prevent boost leaks and blown boots?
The kit is designed to address common factory charge-pipe connection failure points with silicone boots featuring an oil- and heat-resistant inner liner and constant-tension T-bolt clamps. Existing leaks elsewhere in the charge-air system still need to be diagnosed separately.
Are the replacement pipes larger than the factory pipes?
Yes. The factory pipes measure 2.5 inches, while this kit uses 3-inch piping throughout, with smoother transitions and no factory hot-side resonator.
Will this kit fit a 2020 or newer Duramax?
No. This kit fits 2017-2019 Chevrolet Silverado and GMC Sierra 6.6L Duramax L5P trucks only. The charge-piping layout changed on later models.
Are boots and clamps included?
Yes. The kit includes silicone boots, constant-tension T-bolt clamps, and a new O-ring and spring clip for the cold-side quick-disconnect fitting. The factory intake air temperature sensor and its harness must be transferred to the new piping.
Can I install a boost gauge or temperature sensor?
Yes. The piping includes two sensor bungs that can be drilled and tapped for boost, temperature, or other monitoring sensors.
Is an intercooler included?
No. The kit includes the hot-side and cold-side intercooler pipes, boots, and clamps. The intercooler is a separate component.
